Understanding Inner-Grooved, Small-Diameter Copper Tube Heat Exchangers: Design, Benefits, and Applications

By Marcus Elmer, Vice President and Director, Tube & Fittings Council for the Copper Development Association

Copper tube heat exchangers continue to lead in modern thermal design because they evolve alongside modern performance designs. Across HVAC/R, industrial processing, and specialized applications, manufacturers and engineers seek higher efficiency, reduced system footprint, lower refrigerant use, and greater durability. Today’s heat exchanger designs integrate advanced geometries, enhanced surfaces, and system-level optimization to meet these expectations.

Inner-grooved, small-diameter copper tube heat exchangers are among the most significant technologies in the field. Often found in heat pump applications where evaporators and condensers switch roles, these systems are engineered to improve thermal performance, enable more compact equipment designs, and accommodate lower refrigerant charges with next-generation refrigerants.

The Foundation of Copper Tube Heat Exchangers

A copper tube heat exchanger consists of copper tubes that carry refrigerant, water, or other process fluids. Attached fins, typically aluminum or copper, increase the external surface area as air or another secondary fluid flows across them, increasing airside heat transfer. This system transfers heat efficiently between two media by combining the high thermal conductivity of copper, the extended surface area provided by fins, and controlled airflow or fluid dynamics.

Although the concept appears straightforward, real-world performance depends heavily on how engineers design and integrate each component.

Core Design Elements of Inner-Grooved, Small-Diameter Tube Heat Exchangers

Modern copper tube heat exchangers rely on several interdependent design variables that directly influence thermal performance, efficiency, and system compactness.

Tube Design and Diameter Optimization

Tube diameter strongly influences heat transfer coefficients, refrigerant volume, and pressure characteristics. Modern systems increasingly use smaller diameter copper tubes to improve overall heat exchanger performance.

Reducing the tube diameter increases the internal surface-to-volume ratio and improves the refrigerant-side heat transfer coefficient. Engineers can also reduce refrigerant charge and material usage while maintaining equivalent system capacity. Smaller tubes support more compact coil geometries and improved airflow characteristics across the coil face.

These benefits require careful redesign of circuitry and system layout. Engineers must optimize refrigerant distribution and pressure drop to fully realize the performance advantages of small-diameter tube designs.

Fin Design and Air-Side Performance

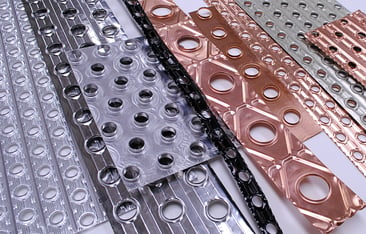

Fins are key to achieving optimal air-side heat transfer, as they significantly enhance efficiency. Engineers evaluate fin type, fin pitch, spacing, and material selection to optimize overall coil performance. Image left: Fins made from aluminum, copper, and stainless steel. Courtesy of Super Radiator Coils.

Well-designed fin geometry improves airflow distribution, increases heat transfer efficiency, reduces pressure drop across the coil, and enhances total system effectiveness. In many HVAC/R applications, air-side resistance and airflow management influence efficiency just as much as refrigerant-side performance. By integrating optimized fin designs with smaller diameter copper tubes, manufacturers can increase heat transfer capacity without increasing system size.

Internal Tube Enhancements

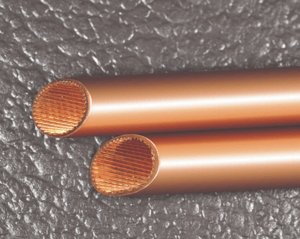

Many modern copper tubes incorporate internal surface enhancements known as microgrooves (See image right). These engineered grooves increase internal surface area, increase internal heat transfer coefficient, and promote refrigerant mixing within the tube.

Microgroove geometries increase the refrigerant-side heat transfer coefficient by disrupting boundary-layer formation. This design enables systems to achieve higher capacity within a smaller footprint, a key requirement in modern equipment design. Inner-grooved tubes also help improve temperature uniformity and support higher-performing heat pump and refrigeration systems that demand compact and efficient heat exchangers.

Tube Circuitry and Flow Distribution

Fluid movement through the coil influences system performance as much as material selection. Effective circuitry design ensures even refrigerant distribution, controlled pressure drop, and stable thermal performance.

Modern systems often use multiple parallel circuits and optimized manifolds to reduce tube-side pressure losses while improving efficiency. Proper flow distribution is especially important in smaller-diameter tube systems because engineers must carefully balance increased heat transfer performance with acceptable pressure characteristics.

Materials and Manufacturing

Copper remains the preferred material for tube heat exchangers because it provides high thermal conductivity, corrosion resistance, formability, and manufacturability.

Advanced manufacturing processes produce strong tube-fin bonding, long service life, and consistent thermal performance. Here, manufacturing quality is key, and design benefits only translate into performance if they can be reliably produced at scale.

Performance Advantages Inner-Grooved Small-Diameter Copper Tube Heat Exchangers

• High Thermal Efficiency: Copper tube heat exchangers provide excellent thermal efficiency by combining copper’s superior conductivity with extended fin surfaces and optimized refrigerant and airflow dynamics. Inner-grooved, small-diameter tubes further improve heat transfer performance by increasing refrigerant-side coefficients and enhancing internal flow behavior.

• Compact and Lightweight Design: Optimized tube geometries allow engineers to reduce system footprint, decrease material usage, and create more flexible heat exchanger layouts.These compact designs deliver significant value in space-constrained applications, including packaged HVAC systems, heat pumps, refrigeration equipment, and mobile systems.

• Durability and Long-Term Reliability: Copper’s material properties contribute to corrosion resistance and antimicrobial behavior. These characteristics help maintain long-term thermal performance and improve system reliability over extended operating cycles.

• Adaptability Across Applications: Copper tube heat exchangers can support different fluids, operating temperatures, spatial constraints, and performance requirements. This versatility allows engineers to customize designs for both standard HVAC/R systems and highly specialized thermal applications.

Applications and Use Cases

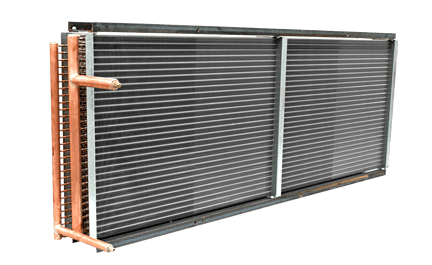

• HVAC and Refrigeration Systems: Manufacturers widely use copper tube heat exchangers in air conditioning systems, heat pumps, refrigeration equipment, and packaged HVAC units. These systems rely on copper tube coils for efficient thermal exchange, long-term durability, and reliable operation. Image left: 5mm Condenser Coil. Courtesy of Super Radiator Coils.

• Heat Pump Technologies: Heat pump applications continue to drive innovation in copper heat exchanger design. Inner-grooved, small-diameter copper tubes improve heating output. The multitude of small tubes increases the primary tube external surface area and internally, enhancing refrigerant-side heat transfer. Modern heat pump systems increasingly rely on advanced copper tube heat exchangers to meet evolving efficiency and low-GWP refrigerant requirements.

• Commercial and Industrial Heat Exchange: Copper tube heat exchangers are also often found in industrial process cooling, equipment thermal management, and continuous-duty thermal systems. Manufacturers use these systems in packaged equipment, refrigeration condensers, heat pump water heaters, and process cooling applications because they provide a balance of efficiency, durability, and design flexibility.

Emerging and Specialized Applications

Emerging applications continue to expand the role of inner-grooved, small-diameter copper tubes. High-pressure refrigerants such as CO₂ require heat exchangers capable of operating under elevated pressures while maintaining strong thermal performance.

Compact, high-capacity systems such as data center cooling platforms and advanced electrification technologies also benefit from smaller copper tube geometries, which enable higher thermal capacity within constrained footprints.

Applications requiring precise thermal control increasingly depend on advanced copper tube heat exchanger designs to meet demanding operating requirements.

Copper tube heat exchangers combine simplicity with adaptability, efficiency, and engineering versatility. As system requirements continue to evolve, engineers improve these systems through advancements such as smaller diameter copper tubes, enhanced fin designs, and inner-grooved tube technologies.

Mastering the design and application of inner-grooved, small-diameter copper tube heat exchangers remains critical for achieving superior thermal performance, improved efficiency, reduced refrigerant usage, and long-term reliability in today’s evolving thermal landscape.
